Trench protect cover

This trellis cover prevents falls into open trenches. It acts as a temporary platform over holes in the road, keeping workers safe and sound. The cover is particularly relevant for construction sites and road works, where falls through trenches happen, although they could have been easily avoided.

The trellis cover expands over holes, while still ensuring that the area is easy to inspect.

Advantages

trench cover solutions

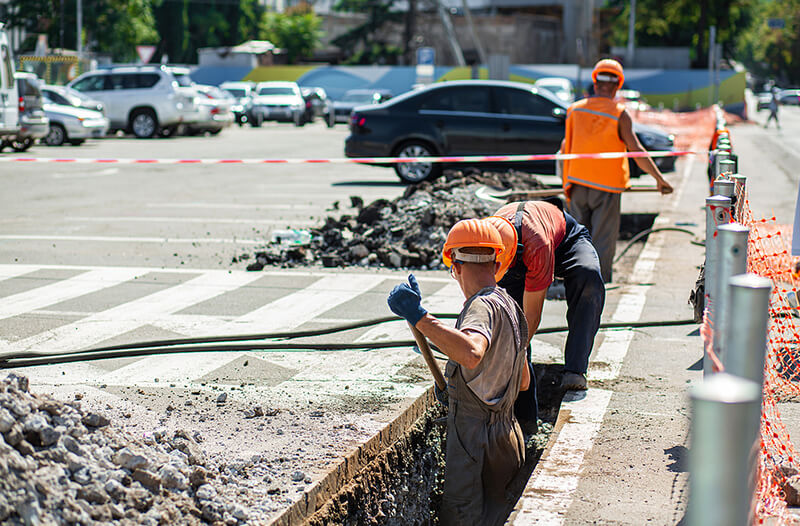

A fall protection solution for trenches

The Oxford Safety Components trench cover prevents construction workers from falling into open voids. Compared to its alternatives (such as solid boards or signage), the system has the following advantages:

  • It allows for easy inspection of the trench, as it is not opaque
  • It places a physical barrier between the user and the hazard
  • Allows for quick access into the trench when and as required
  • It can be clipped down for extra stability.

A physical barrier between you and a hazard

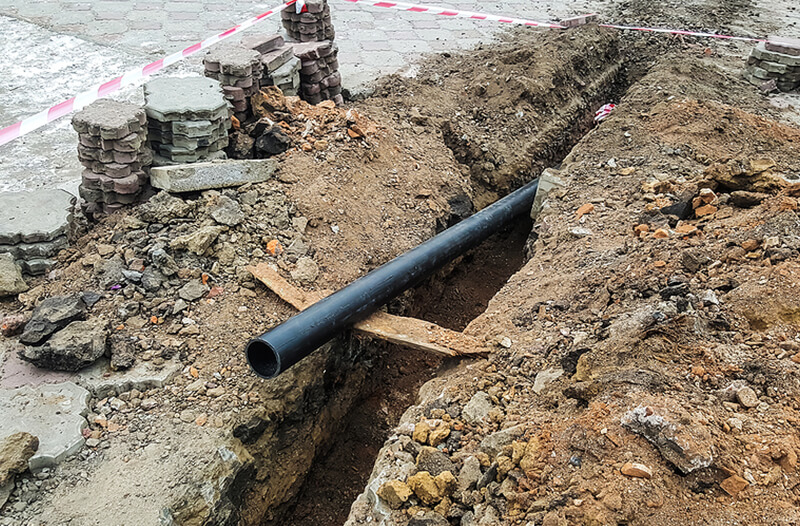

Trenches and holes in the ground can be easy to miss, especially on busy sites. This means they can lead to serious accidents and, in some cases, even death.

Barriers and signage can be used to signal such hazards, but a physical barrier is always the best solution to ensure that everyone is safe. This is especially important for teams working inside a barrier as they can easily fall into unprotected holes in the ground.

unprotected trenches
trench protect cover system

A strong, durable cover

This trench cover is tough. The bars are made of plastic resin reinforced with windings of strong, high technology filament fibres (developed for aero-space).

While it is not designed for pedestrians or high traffic areas, the cover will prevent workers from falling into unprotected trenches.

safety-docs

Technical details

  • Material: reinforced plastic resin
  • Dimensions of the trellis when closed for transport and storage: 1.46m (L) x 0.26 m (W) x 35mm thick
  • Weight: 6.5 kg
  • Covering length over trench:
    • 0.9m trench: 2m (L) x 1.2m (W)
    • 0.6m trench: 2.75m (L) x 0.9m (W)
