Tall Load Pallet Gate - Silver (for loads 1.3m wide x 2.25m high)

Typically ship in
2-3 Business Days
ex VAT £1,586.69 inc VAT £1,904.03
plus minus

Product Description

The tall load mezzanine pallet gate has been designed to fit:

  • Max load width 1.3m
  • Max load height 2.25m


  • Silver

Why choose a pallet gate

Moving goods around a busy warehouse can present many risks, the moving of pallets from one floor to another has a host of problems associated with it for both the handler of the goods and the transporter themselves.

Our pallet gate limits the dangers involved in moving pallets around your factory or mezzanine, ensuring a barrier always exists between the user and any potential fall hazard.

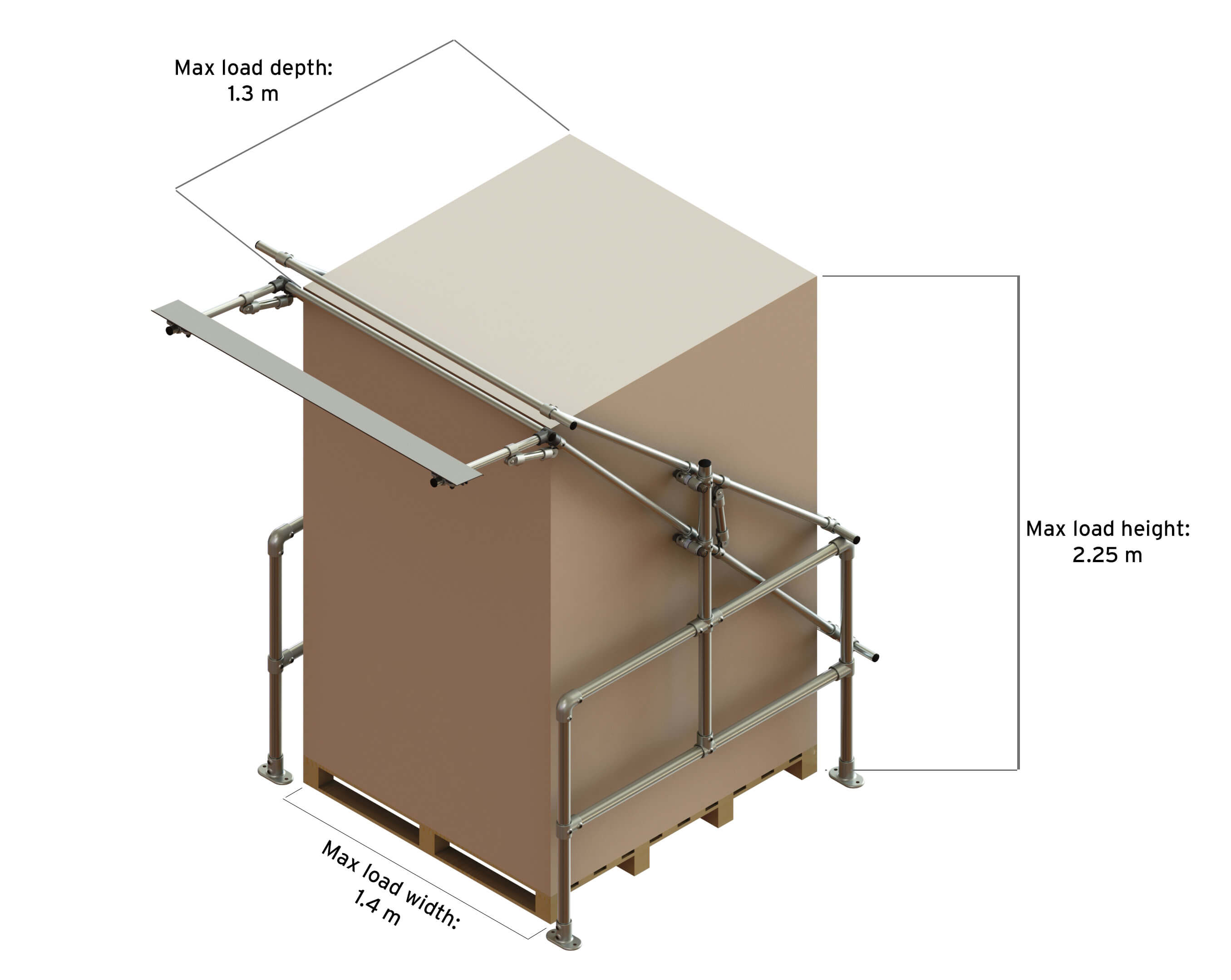

Type C pallet gate max load dimensions

Easy to maintain

As the gate is made from tube and fittings, in the event that an element of the gate is damaged, it is easily replaced without having to replace the whole unit and no specialist tools are required.

Download our pallet gate brochure

Space requirements
(excluding pallets)

  • Width: 1600mm
  • Depth: 1527mm
  • Height: 2500mm


  • Pre-assembled sections for quick installation
  • No welding on site
  • Order directly online
  • Suitable for indoor and outdoor use
  • Powder coated version available for high visibility
  • Virtually maintenance free

Technical info

  • Compliant with EN 14122-3 and OSHA requirements for assured safe operation
  • Available in Galvanised steel or Aluminium dependant on customer requirements
  • Built using Kee Klamp and Kee Lite fittings, TUV approved components for quality assurance
  • No welded parts so any damage can be easily repaired, keeping the gate operational
  • Cycle tested for 50,000 openings for assured durability
  • Salt spray tested for corrosion resistance (672 hours) to allow continuous operation even in corrosive environments
  • Minimal number of moving parts for lower maintenance
  • Will be supplied part assembled to facilitate on site installation


Ground View

The Tall Load Pallet Gate has been designed so that users can safely and securely load goods from one level or area to another without allowing any personnel to put themselves at risk.

Mezzanine View

Seen from the top of the mezzanine floor, you can then load and unload your pallet with ease.

Additional Information

Dimensional Weight (kgs) 125.0000
Weight (kgs) 125
Manufacturer Kee Safety
Colour Galvanised
Compliance EN ISO 14122 Part 3
Max Weight Limit N/A
